Ellis Mfg. Co. - 2x4 or 4x4 Shore Jack Wrench - Easily Level Ellis Shores and Purlins - 1,300 lb Max Lift

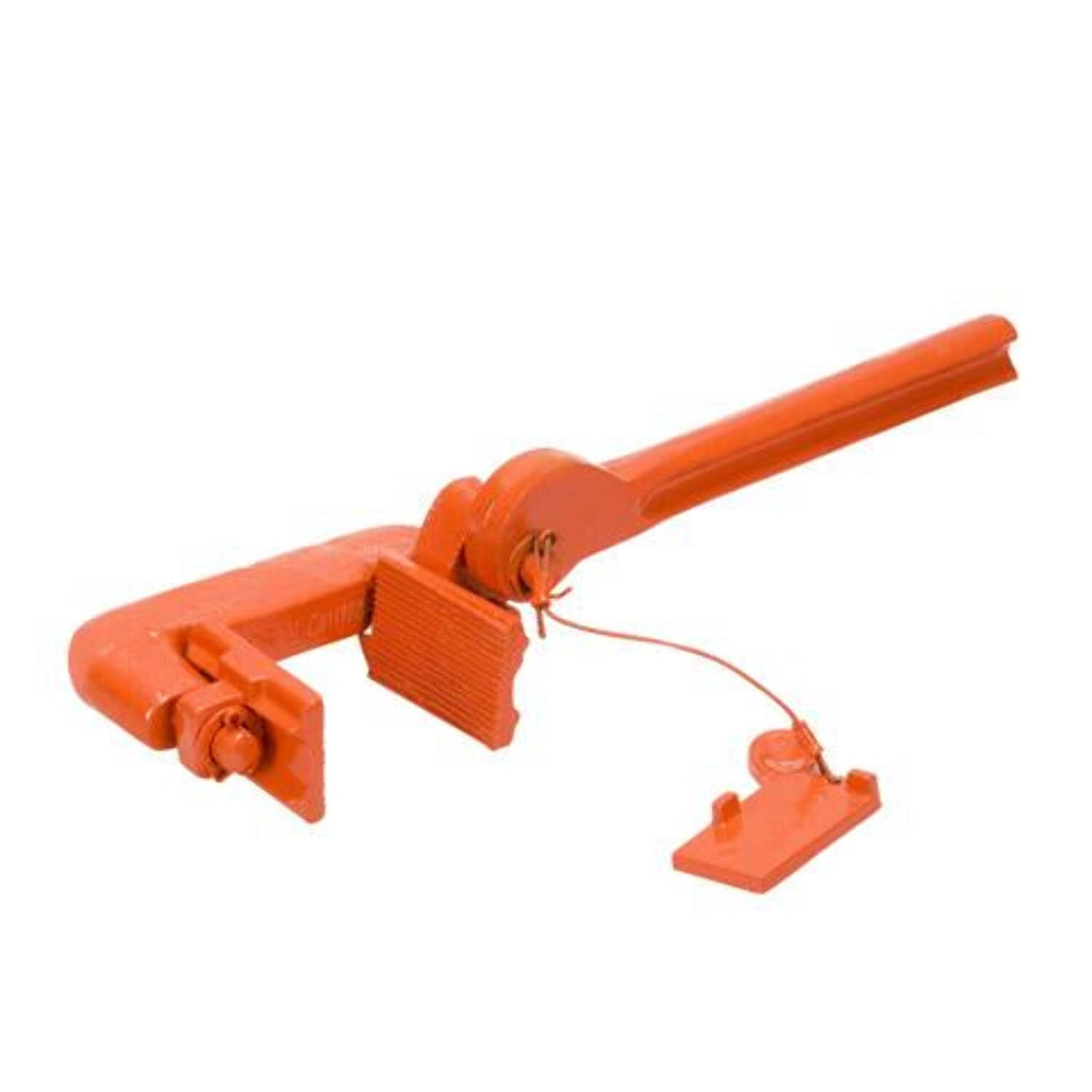

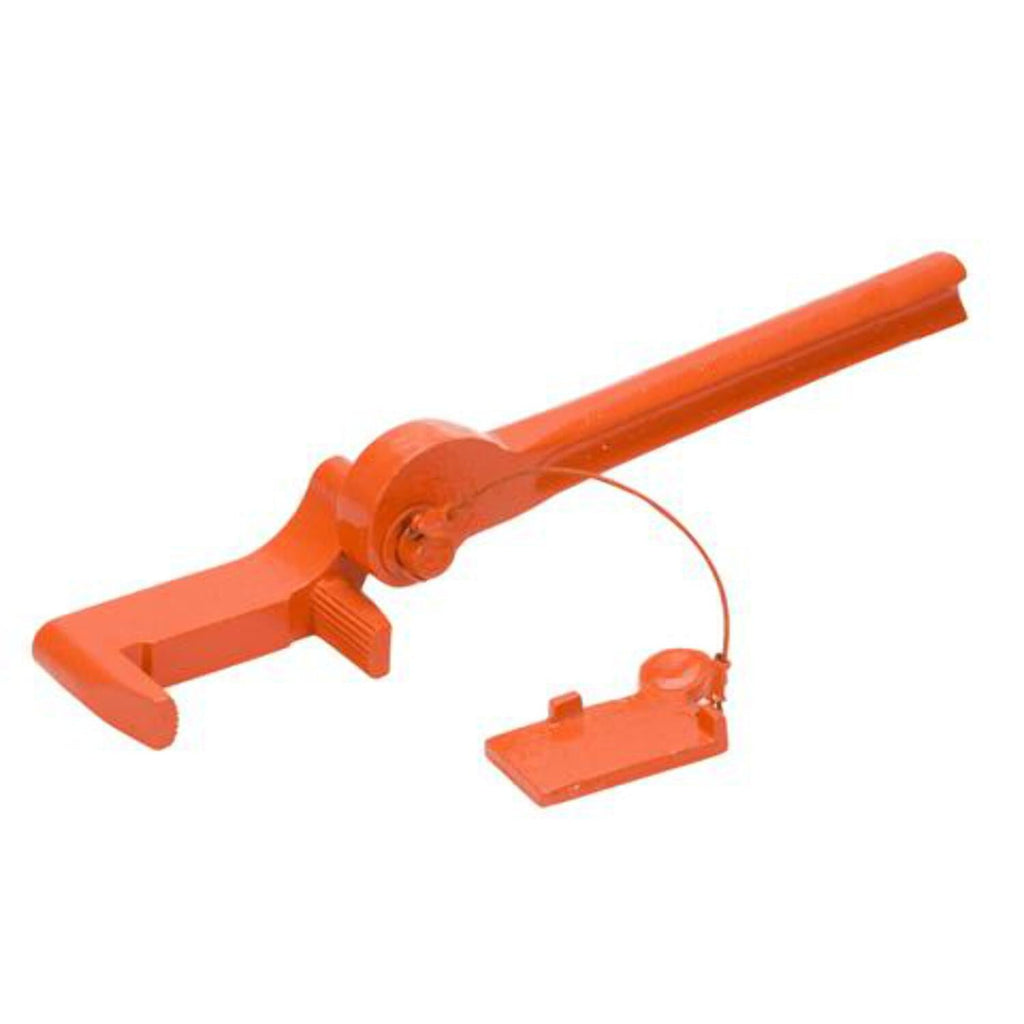

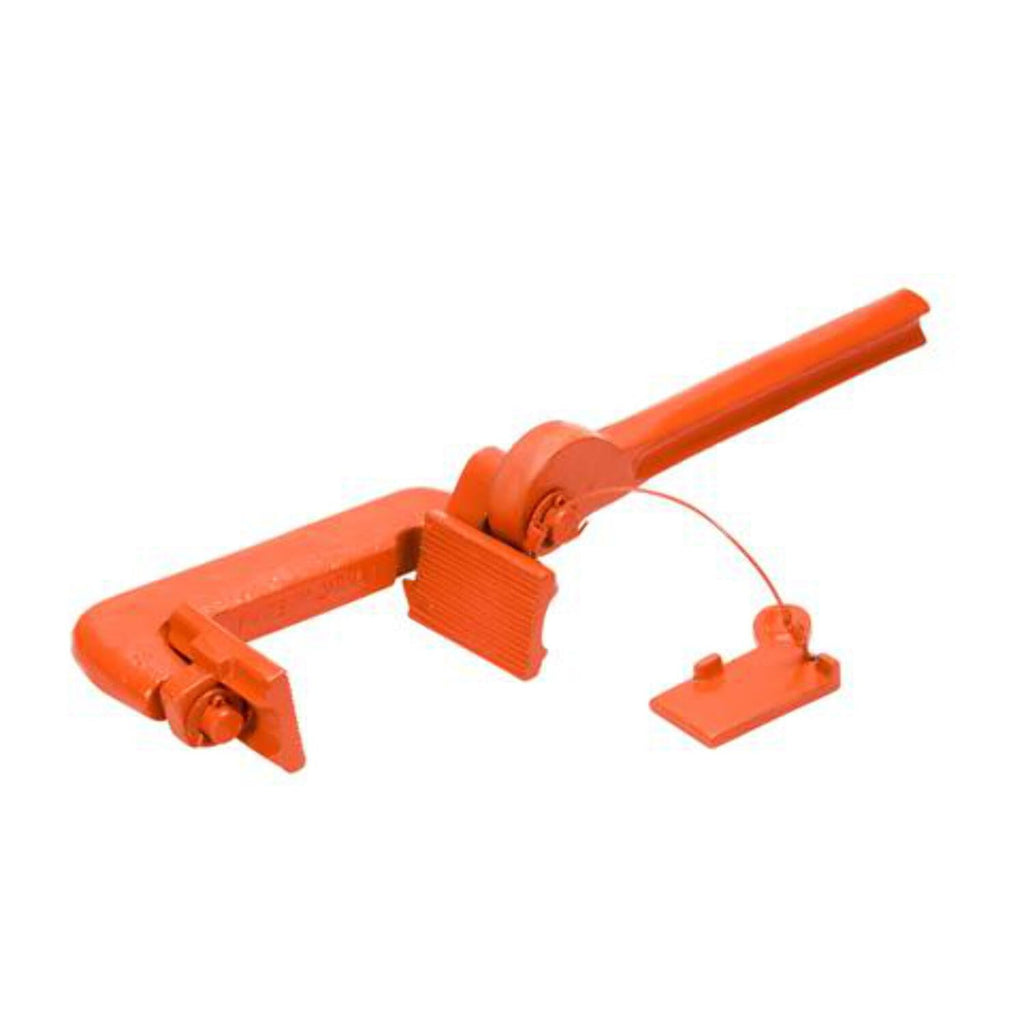

The Ellis Jack makes leveling of shores and purlins simple. The Jack grips the wood of the lower shore member and the upper shore member is raised about one inch per stroke through the lifting pressure of the cam at the anchored end of the Jack handle.

Specifications

The Ellis Jack is used in conjunction with Ellis Methods to level forms used in concrete construction. Only a few Ellis Jacks are needed around the job – one for each 100 Ellis Shores.

Demonstration Video

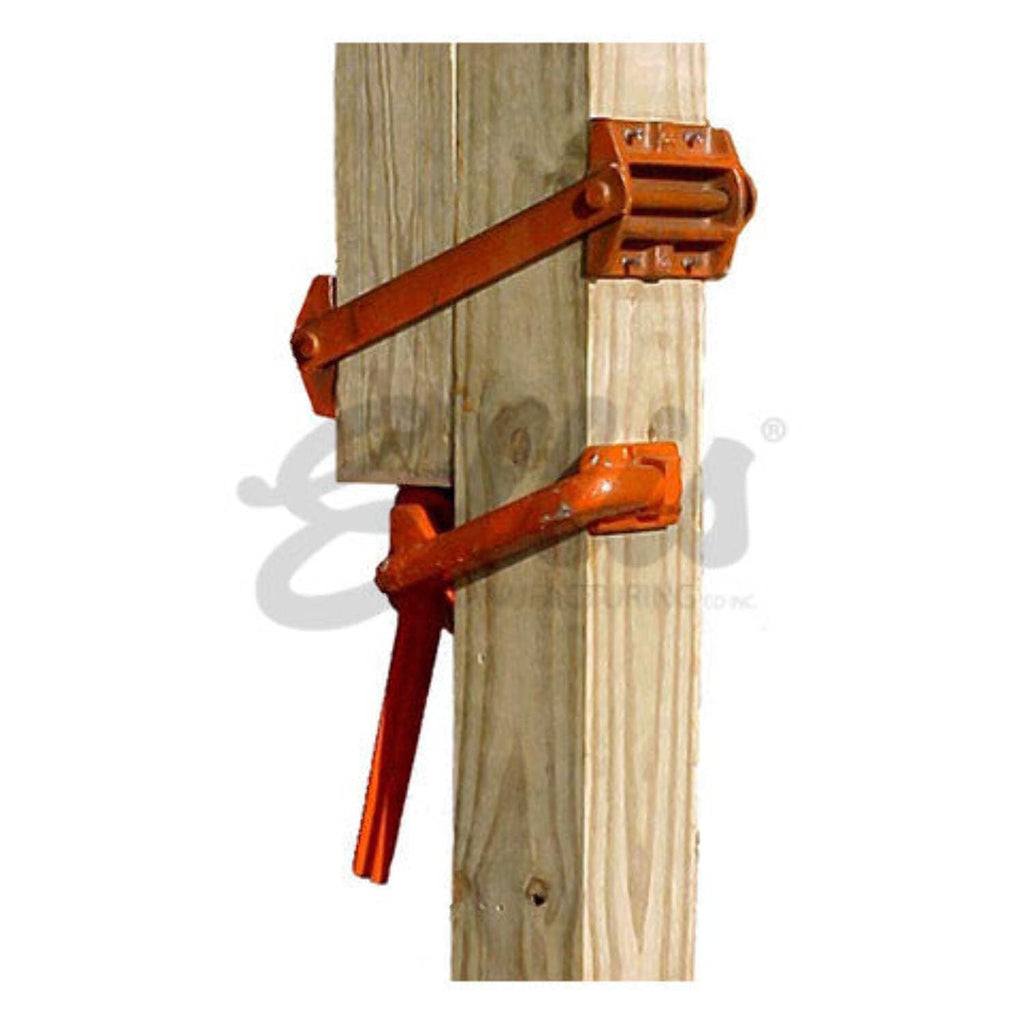

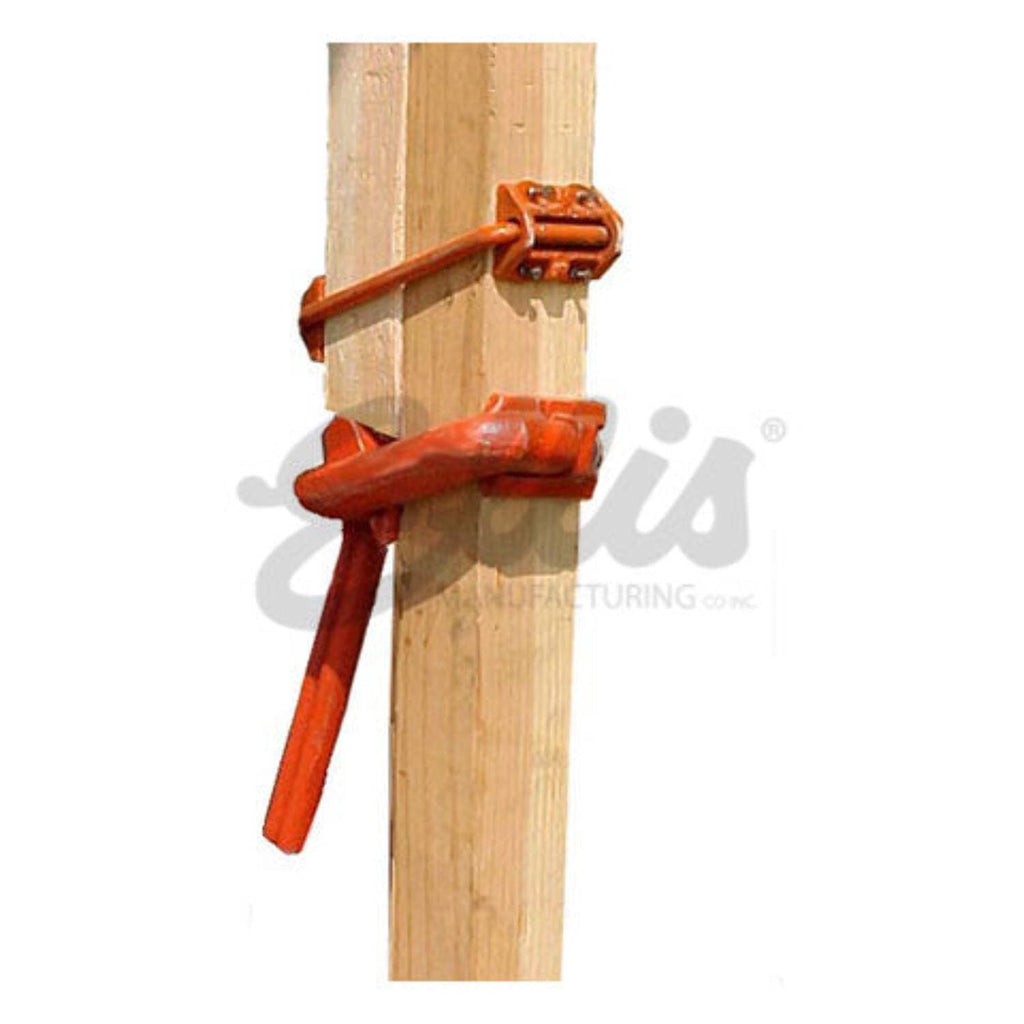

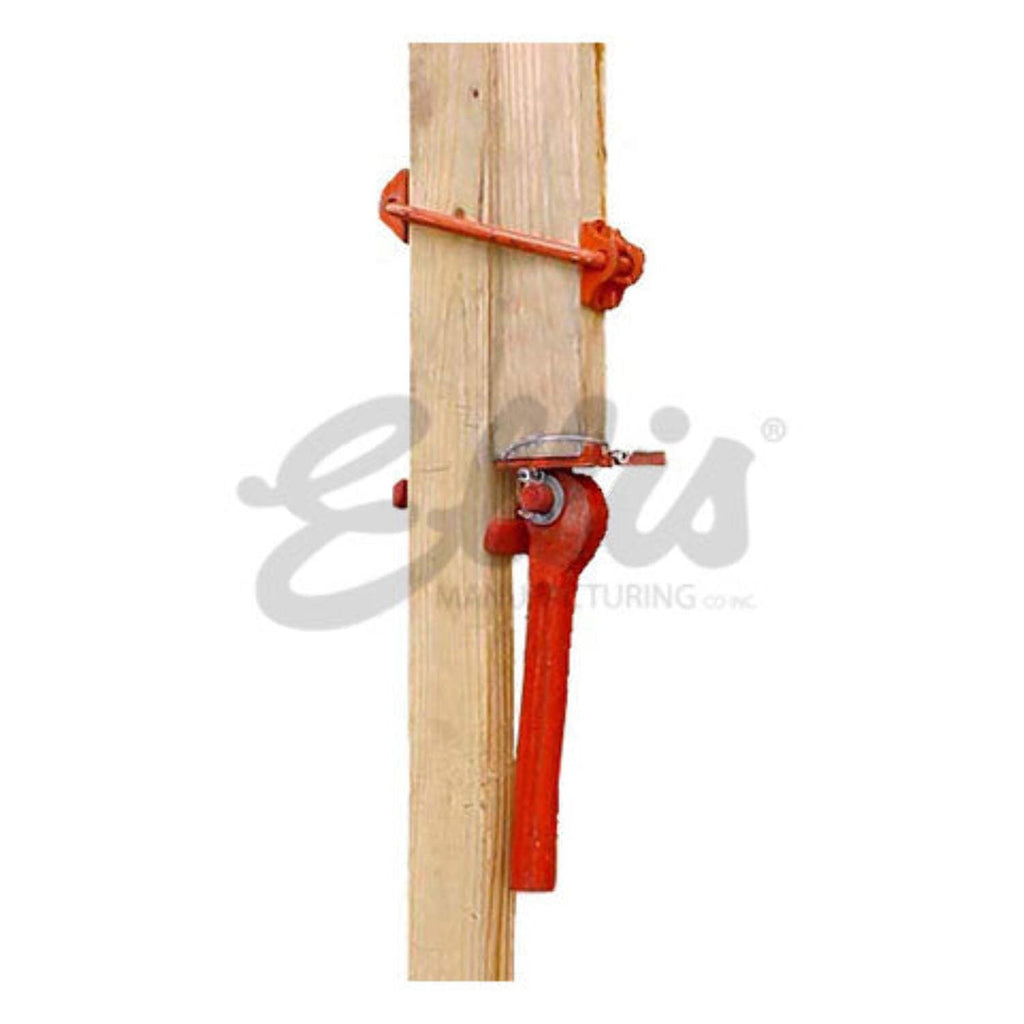

One worker, using the Ellis Jack, can level shores by themself. He/She simply holds the Jack by the handle with one hand, slips it onto the lower shore member just below the bottom of the upper member, using his other hand to guide the back plate into position. Then jacks the handle one stroke, which raises the upper member and the form it is supporting about 1-inch. Then jars the back plate loose and slips it up into position for the next stroke. Time required for each stroke is about 5-seconds. A story pole and level line may be used for measuring story height to which form must be adjusted.



Specifications

ITEM#: H-2

Handle Length: 12”

Weight: 9 lbs.

Frame Opening: 3-5/8”

Max Lift: 1300 lbs.

Used With: 2x4 or 4x4 Shores

Material: Permasteel (hardened malleable) for better wear and longer life. Can also be used as a lighter alternative for jacking 4x4 shores.



ITEM#: H-4

Handle Length: 12”

Weight: 17 lbs.

Frame Opening: 3-3/4”

Max Lift: 2000 lbs.

Used With: 4x4 Shores

Material: Permasteel (hardened malleable) for better wear and longer life. GRIPPING SURFACES (ON ORIGINAL DESIGN): Pivotal plates with serrated surfaces.

ITEM#: H-6

Handle Length: 12”

Weight: 30 lbs.

Frame Opening: 5-3/4”

Max Lift: 2000 lbs.

Used With: 6x6 Shores

Material: Permasteel (hardened malleable) for better wear and longer life. GRIPPING SURFACES (ON ORIGINAL DESIGN): Pivotal plates with serrated surfaces.

NOTE: The Ellis Jack is not used for lowering the shore. This is done by simply tapping Shore clamps loose one at a time with hammer and then using both ends of the hammer to lift each clamp away from the wood simultaneously. The 4x4 Hand Jack should NOT be used for lifting loads of over 2,000 lbs. (such as forms and concrete which require correction).

Detailed Product Drawings

H-2

H-4

H-6
